Mecaflor

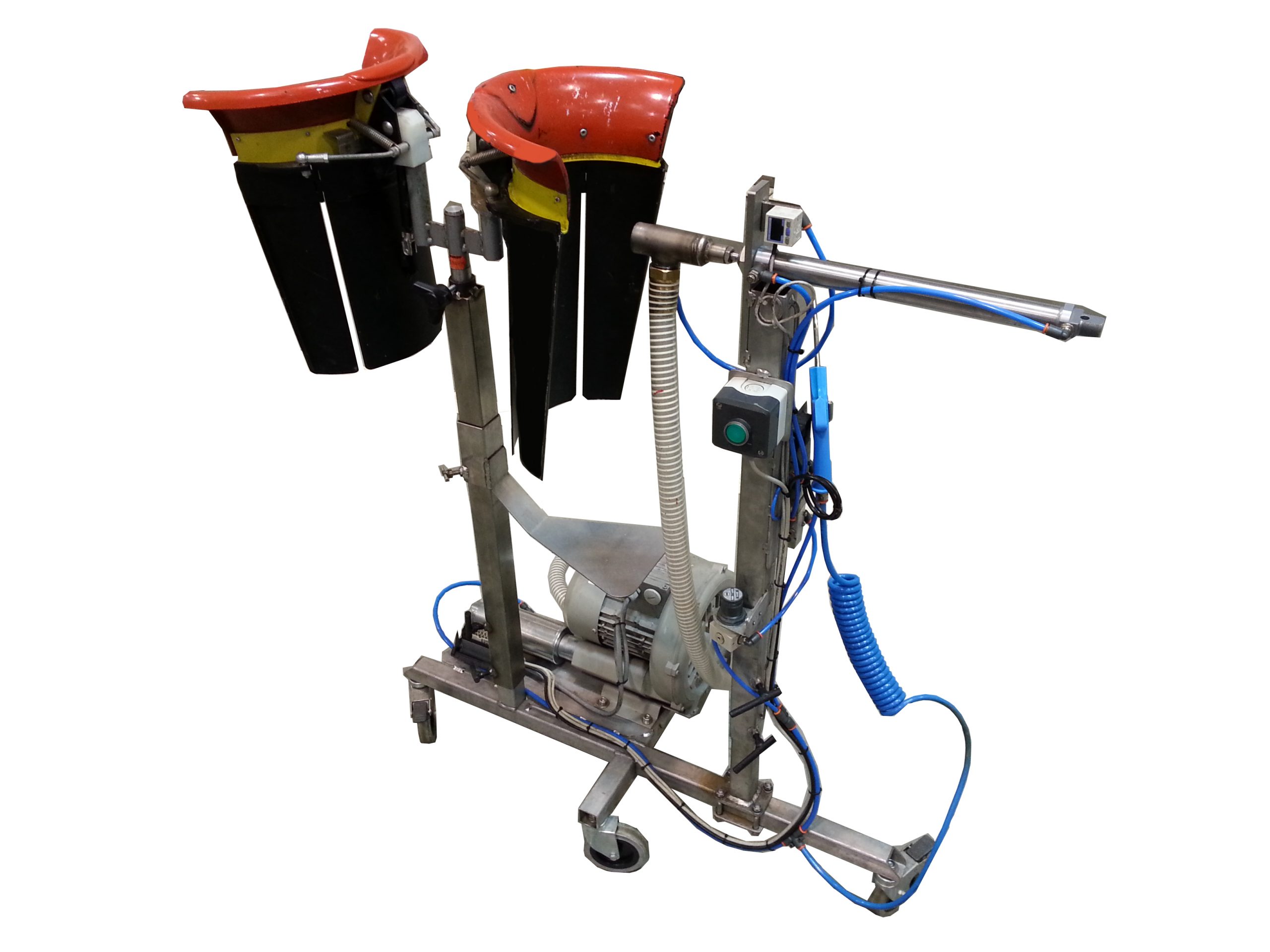

Sleeving machine for flower bouquets

Machine to sleeve easily all types of flower bouquets.

Sleeving machine for flower bouquets

Sleeve rapidly and without effort up to 1400 bouquets per hour with our two models of automatic sleeving machines.

Load the sleeves holder and start the machine. As soon as it operates, the vacuum system opens the first sleeve of the stack. Drop a bouquet in the pit and it will be instantly sleeved.

A pneumatic gripper tears the sleeve off its stub and then you will just have to collect the sleeved bouquet.

Technical information

  • Model  Ø165mm

– Production capacity : up to 1400 sleevings per hour (1 personne)

– Power supply : 220V

– Compressed air : 5.5 bars mini

– Sleeves from 30 to 38 cm wide

– Dimensions : 80x55x110 à 140cm (adjustable height)

– Weight : 73kg

– Bouquet introduction diameter : 16,5 cm

  • Model Ø220mm

– Production capacity : up to 1400 sleevings per hour (1 personne)

– Power supply : 220V

– Compressed air : 5.5 bars mini

– Sleeves from 42 to 49 cm wide

– Dimensions : 101x77x100 to 130cm (adjustable height)

– Weight : 88kg

– Bouquet introduction diameter : 23 cm

Main features

  • Automatic opening of the sleeves by suction
  • 360° sleeve opening with protective flaps to avoid damaging the flowers when sleeving them
  • Sleeves loading on the stub in a few seconds
  • Adjustable working height
  • 100 sleeves loading stock (2×50 sleeves)

Advantages

  • Productivity gains
  • Protection of the flowers
  • Mobile machine on 4 wheels
